Getting started
Two minutes to first serve.
Everything you need, from the first charge to reading the board like you’ve owned it for years. Pick where to start.
Set up
Set up in four steps.
About two minutes, plus the first charge.
What’s in the box
- Scoreboard: the scoreboard and a USB-C charging cable. There’s no wall adapter; use a certified USB-C adapter. The remote is sold separately.
- Remote: the remote and its clip. It charges over USB-C.
- Scoreboard and remote bundle (Amazon): the scoreboard, the remote and two USB-C charging cables.
-
30 h Standard60 h Extended
01Charge it
Plug the USB-C cable into the port under the flap at the bottom of the back. Give the scoreboard at least 2 hours before your first game, and the remote 30 minutes. A full charge lasts up to 30 hours on the Standard battery, or 60 on the Extended.
-
02Switch it on
Flip the Main Power switch, under the same flap. When the screen shows A | b, it’s ready for a new game. The power button at the top of the back, next to the pairing button, turns the display off and on, and wakes the scoreboard when it’s asleep.
-
03Put it where everyone can see
Most players put it at mid-court, facing the players, so both teams and anyone watching can see it. It reads in sun or shade.
FenceFlip it upside down and hook the feet over a chain-link fence. The display turns itself the right way up.
GroundStand it on its fold-out feet.
TripodThe Tripod Mounting Bracket fits any standard tripod.
VESA bracket100 × 100 mm pattern on the back. Use M6 × 18 mm bolts.
-
1Hold the pairing button until it beeps
2Tap the remote’s power button 04Pair the remote
Hold the scoreboard’s pairing button, at the top of the back next to the power button, for 2 seconds, until it beeps. Then tap the remote’s power button. The blue light on the scoreboard means you’re connected. Now tap A or B to pick who serves first, and play. Moving a remote from another scoreboard? Hold its power button for 1.5 seconds instead.
Cheat sheet
The whole remote on one card.
ATeam A
BTeam B
Power
Scoring
- ATap
- Team A won the rally
- BTap
- Team B won the rally
- AHold
- Undo the last rally
Game
- A+BTap
- Switch sides
- A+BHold
- Reset the gameOn the new-game screen, this opens game settings
Power
- Tap
- Display off or onThe game is kept while the board is dark
- +AHold power, tap A
- Turn the remote offKeep holding power past two buzzes, then tap A. Tap power to wake it.
- Hold 1.5 s
- Re-pair the remotePut the scoreboard in pairing mode first: hold its pairing button for 2 seconds
- Hold for 3 buzzes
- Update modeThen update at update.godropshot.com or in the Dropshot app. It restarts by itself afterwards. Not updating? Turn it off (hold power, tap A), then tap power.
Practice before you play
Try every button right here.
Pick what you want to do and watch which buttons to press, and exactly what the scoreboard shows. Or press the remote yourself.
Read the board
Everything the board tells you, at a glance.
Tap a label to light it up on the board.
Score call
7 – 6 – 2
- Game overWhen a team wins, the score flashes and the board plays a short tune. It keeps counting if you play on. Hold A + B to start the next game.
Game settings
Singles, rally scoring, games to 15. Your rules.
On the new-game screen (A | b), hold A + B to open settings. Then tap B to change an option and A to confirm it. Try it on the board below.
- SEtSettings are open. It moves on to the first option by itself.
- dbL / SnGLDoubles or singles.
- SIdE / rALL / USAPSide-out scoring, where only the serving team scores. Rally scoring, where every rally scores. Or USAP, USA Pickleball’s 2026 rally rules: in doubles, the serve starts from the right after every side-out.
- L11Play to 9, 11, 15 or 21 points. Rally scoring starts at 21; tap B to change it.
- -2 / -1Win by 2 or win by 1. Tapping A here saves everything.
Group Mode
One remote, up to four boards.
Put a board at each end of the court, or one facing each team. Every board in the group shows the same score, and one remote runs them all. Update each board first.
Board 1 · pairing button
0.0 s
Or press and hold the button yourself.
- Hold 7 sStart with the board your remote is paired to. Hold its pairing button for 7 seconds. It beeps at 2 seconds: keep holding. At 7 seconds it shows GrP and looks for a group.
- GrP1It beeps and shows GrP1: this is the main board. A corner lights for each board in the group, and the next corner blinks while it waits for more. It waits one minute.
- Hold 7 sWithin that minute, hold the next board’s pairing button for 7 seconds, past the beep.
- Pr 2It beeps twice and shows Pr 2: it’s in. The main board shows GrP2. Add a third and fourth board the same way.
- PlayPlay. Score with the remote as usual, and every board shows the same score. After the minute, the main board goes back to its game screen.
- FlipBoard facing the other way? Press its power and pairing buttons together to swap its sides, so each team’s score is on their side.
- TapTap a pairing button any time to check: GrP2 on the main board, Pr 2 on the others, Solo on a board on its own.
- The boards stay grouped through sleep and the power button, and sleep and wake together.
- Only the main board takes the remote or the app. The others follow it.
- Done? Switch each board’s Main Power off and on, and it starts on its own again.
Watch
Prefer to watch? Jump to any step.
Apple Watch app
Scoring, settings and connecting to the scoreboard from your wrist.
Troubleshooting
Something not right?
Power and display
The board won’t light up
If it’s asleep or the display was turned off, tap the remote’s power button or the scoreboard’s power button. Still dark, or it shows bAtt and goes back to sleep? Make sure the Main Power switch is on, and charge it over USB-C. At 25% or less it won’t start a new game, and below 15% it sleeps even mid-game.
The display is too dim or too bright
The scoreboard sets its brightness from the light sensor on the front, so keep that window clean and uncovered. To set it yourself, connect the Dropshot app and use Brightness on the Scoreboard screen: four levels, or Automatic. At 25% battery or less it dims itself to save power.
The remote
The remote won’t connect
Put the scoreboard in pairing mode: hold its pairing button for 2 seconds, until it beeps. Then tap the remote’s power button. If the remote was paired to a different scoreboard before, hold its power button for 1.5 seconds instead to re-pair it. The blue light on the scoreboard comes on when you’re connected. If the remote doesn’t respond at all, charge it over USB-C.
The remote’s blue light keeps flickering
A quick flicker means the remote is looking for its scoreboard. Make sure the scoreboard’s Main Power is on and it’s close by. New remote? Hold the scoreboard’s pairing button for 2 seconds, until it beeps, then tap the remote’s power button. Moving a remote from another scoreboard? Hold its power button for 1.5 seconds instead. If the scoreboard is connected to the Dropshot app, it can’t take the remote at the same time.
The remote does nothing on a group of boards
In a group, only the main board takes the remote. Tap a board’s pairing button to see which one it is: the main board shows GrP, the others show Pr. To move your remote to the main board, hold its pairing button for 2 seconds, until it beeps, and let go. Then hold the remote’s power button for 1.5 seconds.
Scoring and settings
We gave the point to the wrong team
Hold A for 1.5 seconds to undo the last rally (or side switch). Hold A again to step back another one.
The server or serving side looks wrong
The board follows the rules from the first serve, so a mistake early on carries forward. Undo back to the rally where it went wrong, or hold A + B to reset and start again. If the teams are on the wrong sides of the board, tap A + B together to switch sides.
How do I play singles, rally scoring or a game to 15?
Change it in game settings: hold A + B on the new-game screen, tap B to change an option and A to confirm it.
How do I link two or more scoreboards?
Use Group Mode: one remote runs up to four boards, and they all show the same score. On the board your remote is paired to, hold the pairing button for 7 seconds, past the beep at 2 seconds, until it shows GrP1. Within a minute, do the same on each of the other boards, until each one shows Pr 2, Pr 3 or Pr 4. See it step by step.
Both boards show GrP1? The second one missed the minute and started a group of its own. Switch both boards’ Main Power off and on, and start again.
The app
The app can’t find my scoreboard
The app only lists scoreboards in pairing mode. Hold the scoreboard’s pairing button for 2 seconds, until it beeps, then give the app a few seconds to find it (tap Scan Again if the scan has stopped). Make sure Bluetooth is on and allowed for Dropshot in your iPhone’s Settings. A scoreboard that’s connected to a remote or to another phone or watch won’t show up until you put it back in pairing mode. How to connect the app.
Updates
How do I update the scoreboard or remote?
Go to update.godropshot.com in Chrome or Edge on a computer, or Chrome on an Android phone. It updates the scoreboard and the remote over Bluetooth, and the scoreboard downloads its update over Wi-Fi.
On iPhone, use the Dropshot app: connect the scoreboard, then tap the Scoreboard card on Home. Its firmware section shows when an update is available. The scoreboard needs Wi-Fi to download it, and the app walks you through setting that up. The remote updates from the same screen, under Remote control firmware.
Keep the scoreboard charged or plugged in while it updates. Updates bring new features and fixes.
Outdoors and care
Can I leave it outside?
Play outside all you like: the scoreboard and the remote are IP54, splash and sweat resistant. Don’t submerge them, wipe them dry if they get wet, and bring them in after play. They’re made to be stored between −10 and 45 °C (14–113 °F), so not in a hot car. More in care and safety.
Specs, care and safety
The fine print, kept up to date.
The parts, the lights, the numbers and the regulatory notices. Tap a heading to open it.
- 30 h / 60 hBattery life, Standard or Extended
- IP54Splash and sweat resistant, board and remote
- 100 × 100VESA mount in mm, with M6 × 18 mm bolts
- 0–40 °CPlaying temperature (32–104 °F)
Every part, front to back

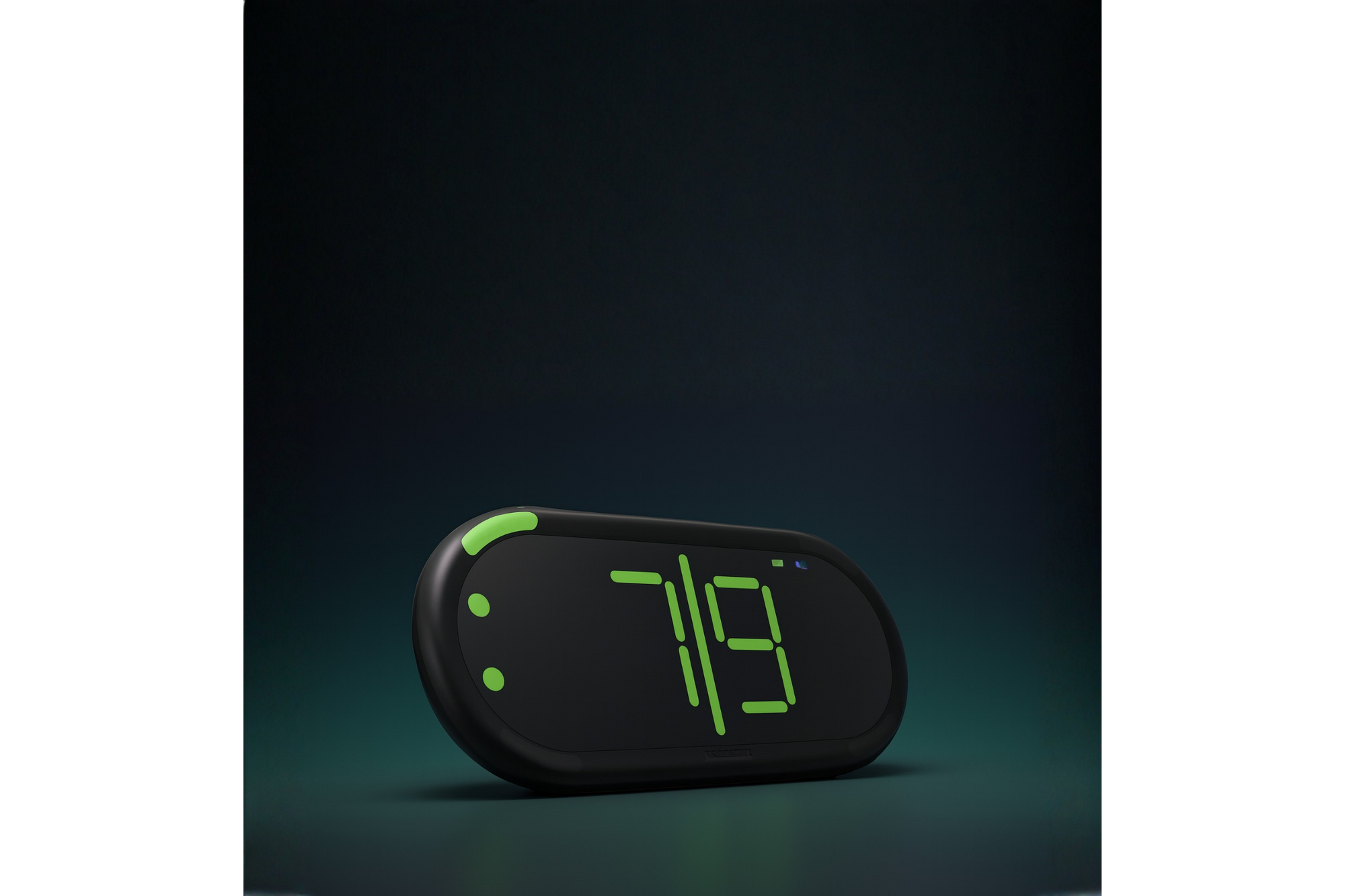

Scoreboard, front
- Display: big green digits you can read from across the court.
- Server dots: in side-out doubles, one or two dots on the serving team’s side show server 1 or 2.
- Corner lights: show whether the serve comes from the right or left court.
- Blue light: on while the remote or the app is connected.
- Battery light: shows how much charge is left.
- Light sensor: sets the brightness for sun or shade. Keep it clean and uncovered.
Scoreboard, back
- Main Power switch: turns the scoreboard on and off.
- Power button: turns the display off between games, and back on.
- Pairing button: hold it for 2 seconds, until it beeps, to pair a remote.
- Volume switch: sets how loud the buzzer is.
- USB-C port and charging light.
- Handle, VESA mount points and fold-out feet that double as fence hooks.
Remote
- A and B: one button for each team.
- Power button on the end: display on or off, pairing, turning the remote off and update mode. See the cheat sheet.
- Blue and red lights: connection and battery.
- USB-C port for charging.
- Slots for the clip, the wristband or the paddle attachment.
What the lights mean
| Light | What you see | What it means |
|---|---|---|
| Scoreboard battery light | White | More than 80% charged |
| Scoreboard battery light | Yellow | 31–80% charged |
| Scoreboard battery light | Red | 30% or less: charge it soon |
| Scoreboard battery light | Blinking | Charging. It stops blinking when it’s full |
| Scoreboard display | bAtt | 25% or less. Finish your game, then charge it: it won’t start a new one, and the display dims. Below 15% it goes to sleep, even mid-game |
| Scoreboard blue light | On | The remote or the app is connected |
| Remote blue light | Quick flicker | Looking for its scoreboard (a new remote looks for one in pairing mode) |
| Remote blue light | Slow blink | Connected to the scoreboard |
| Remote blue light | Off | The remote is off or asleep |
| Remote red light | On | Charging |
| Remote red light | A quick flash every second | Battery low: charge it soon. Nearly empty, it also stops buzzing |
The charging light on the back of the scoreboard blinks red while it charges and stays solid red when it’s full.
Battery and charging
Scoreboard: up to 30 hours of play on the Standard battery, or 60 hours on the Extended. A full charge takes about 10 hours (Standard) or 20 hours (Extended) with a USB-C Power Delivery charger, and longer from a basic 5 V adapter. Charge it for at least 2 hours before your first game.
- Use a certified USB-C charger, standard 5 V or USB-C Power Delivery, and the included cable.
- After 10 minutes with no presses, the scoreboard goes to sleep with three tones. Your game is kept. Tap its power button, or the remote’s power button, to wake it. (A or B wakes it too, but also scores a point.)
- Between games, tap the power button to turn the display off. You can leave the Main Power switch on.
- Switching the Main Power off clears the game in progress. Your settings are kept. Storing it for more than 30 days, or traveling? Switch it off.
Remote: a full charge takes about 2 hours over USB-C. Charge it for 30 minutes before first use. If it can’t find its scoreboard for a minute, it turns itself off. Tap its power button to turn it back on.
Care and safety
Care
- Switch it off, then wipe it with a dry or slightly damp microfiber cloth. Don’t use solvents or scouring pads.
- Keep the light sensor window clean, and the flap over the ports closed during play.
- Both the scoreboard and the remote are IP54: splash and sweat resistant. Don’t submerge either one, and wipe them dry if they get wet.
- Store them between −10 and 45 °C (14–113 °F), so not in a hot car.
Safety
- Read these instructions before use.
- Charge only with a certified USB-C charger.
- Don’t open the case. There are no user-serviceable parts inside.
- If a battery swells or leaks, or a case is cracked, stop using it and contact support.
- The remote and its clip are small parts. Keep them away from young children.
- Use them between 0 and 40 °C (32–104 °F).
Specifications
| Spec | Scoreboard | Remote |
|---|---|---|
| Model | DS-SB100 | DS-RC100 |
| FCC ID | 2BSWJ-DS-SB100 | 2BSWJ-DS-RC100 |
| Size | 450 × 200 × 40 mm (18 × 8 × 1.5 in) | — |
| Digits | 4.5 in, bright green LEDs | — |
| Battery | Lithium-ion, 3.7 V: 20,000 mAh / 74 Wh (Standard) or 40,000 mAh / 148 Wh (Extended) | Rechargeable lithium-ion |
| Play time | Up to 30 h (Standard) or 60 h (Extended) | — |
| Charge time | About 10 h (Standard) or 20 h (Extended) with a USB-C PD charger | About 2 h |
| Input | USB-C, 5 V ⎓ 1.1 A or 9 V ⎓ 1.1 A | USB-C, 5 V ⎓ 0.1 A |
| Water and dust | IP54, splash and sweat resistant | IP54, splash and sweat resistant |
| Wireless | Bluetooth Low Energy, Wi-Fi 802.11 b/g/n (2.4 GHz) | Bluetooth Low Energy |
| Remote range | — | About 120 ft line of sight |
| Mounting | Fence hooks, feet, VESA 100 × 100 mm (M6 × 18 mm) | Clip, wristband or paddle attachment |
| Playing temperature | 0–40 °C (32–104 °F) | 0–40 °C (32–104 °F) |
| Storage temperature | −10–45 °C (14–113 °F) | −10–45 °C (14–113 °F) |
Warranty, returns and support
30-Day Trial. Bought on godropshot.com? Try it for 30 days from delivery. If it isn’t right for you, send it back for a refund of the price you paid, even if you’ve used it, as long as it’s undamaged, complete and in its original packaging. Return shipping is on you, and the original shipping isn’t refunded. Email support@godropshot.com with your order number to start a return. Bought somewhere else, like Amazon? That store’s return policy applies. Kickstarter pledges are final, but the warranty still applies.
One-year limited warranty on every scoreboard, remote and official accessory. It covers manufacturing defects, component failures not caused by misuse, internal battery failures not caused by external damage, and firmware problems that affect normal use. It doesn’t cover drops and impacts, improper storage, water damage beyond the IP54 rating, use outside the temperature ranges, cosmetic wear, or unauthorized repairs or modifications.
To make a claim, email support@godropshot.com with your order number, what’s wrong, and photos or a short video. The full terms are in our returns and warranty policy.
Regulatory and compliance
FCC (United States). Dropshot Scoreboard, model DS-SB100, FCC ID 2BSWJ-DS-SB100. Dropshot Remote, model DS-RC100, FCC ID 2BSWJ-DS-RC100. The FCC ID is engraved on the back of each one.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
RF exposure, scoreboard: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body.
RF exposure, remote: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 0 cm between the radiator and your body.
European Union (CE / RED). Hereby, Dropshot declares that the radio equipment types DS-SB100 and DS-RC100 are in compliance with Directive 2014/53/EU. Frequency band: 2400–2483.5 MHz. Maximum RF output power: under 20 dBm EIRP (scoreboard, Bluetooth and Wi-Fi), 8 dBm EIRP (remote, Bluetooth).
Disposal (WEEE). Don’t put this product or its battery in household waste. Take it to a collection point for recycling electrical and electronic equipment.
RoHS. This product conforms to the RoHS Directive.
